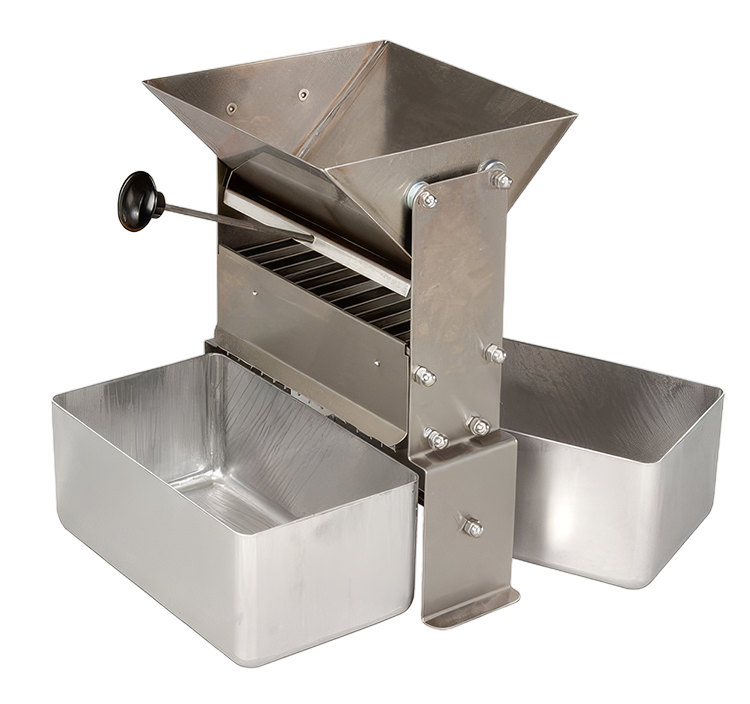

1/2″ Jones Splitter, 16 chutes, Stainless Steel

Description

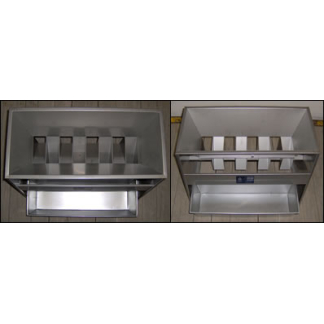

This Precision Riffle Splitter (Jones-type) is designed to reduce bulk material into a convenient representative sample for laboratory analysis. A hopper, with a manual control gate, receives the material to be split, then upon opening the gate, the material flows through a series of equally divided compartments of chutes, sending 50% of the sample to the left side pan and 50% of the sample to the right side pan. These Splitters consist of a stainless steel hopper with a manually actuated flow gate, stainless steel and anodized aluminum riffle bank, and stainless steel frame with support legs. Two (2) aluminum pans are supplied.

Chutes: 16
Chute Width: .5″ (13mm)
Hopper Size: 8.8″ x 8.0″ (224 x 203mm)
Hopper Volume: 150 cu. in.
Pans: 2
