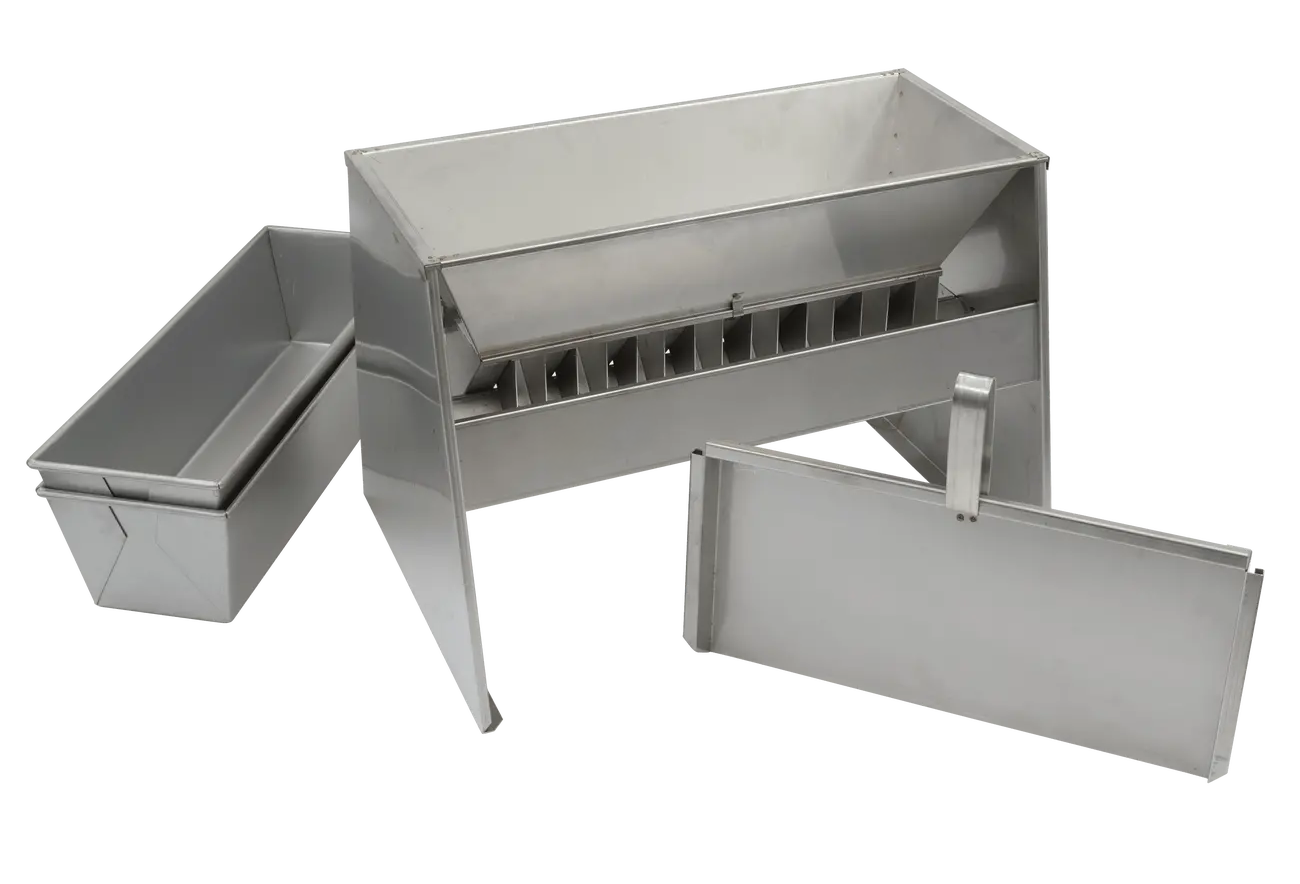

1″Jones Riffle Splitter 16 Chute

Riffle-type sample splitters divide or halve dry materials such as cement, gravel, powdered ores, coal, coke, sand, soils, etc. Material poured into the hopper is divided into two equal portions by a series of chutes that discharge the material alternately in opposite directions into separate pans.

For splitting material up to 0.66″ (16.9mm).  Stainless steel construction: hopper, chutes and frame.

Pans are cold rolled steel, with watertight folded corners, and # 5 wire reinforced rims.  Perfect for nesting.

Extra pans are recommended

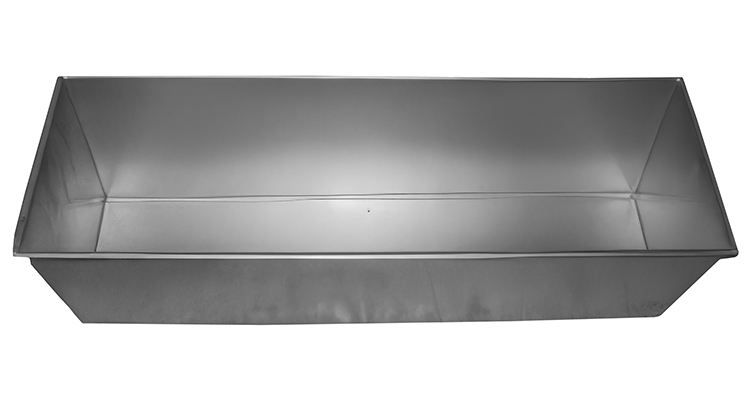

Extra pan: Part # 20135
Pan size: 19 5/8″ x 7″ x 5 1/8″
(483 x 162 x 124mm) L W D
