24 Place (4 x 6) Crucible Mixer for 30-40 gram Crucibles 230v/50-60hz

Description

24 Place (4 x 6) Crucible Mixer for 30-40 gram Crucibles
The versatile Legend Crucible Mixer is ideal for a variety of mixing duties including samples for fire assay, pulp and flux in crucibles.

Fast, thorough mixing.
Increased productivity.
Increased safety.

Operates on 230 volt/50-60hz volt power
Cabinet Dimensions with Lid up: 39" x 27" x 72" (w x d x h)
Cabinet Dimensions with Lid down: 39" x 27" x 48" (w x d x h)
(add 2" to depth for handle and 1.5" to width for cord)
Shipping Weight: 573 lbs
Approximate Shipping Dimensions: 48" x 42" x 55"

Includes batch timer, door interlock switch, one 3000' roll poly film, crucible pallet (specify either 4×6 or 4×7 pattern, and 3" High Density foam cover – 26" x 16" x 3".

The Legend Crucible Mixer is designed to automate the mixing of fire assay crucibles. Because the operators are removed from the mixing operation, there are significant savings of time as well as substantial safety benefits due to reduced fatigue and repetitive motion reduction not to mention the benfits of removing the operator from the potential contact with lead dust while mixing.

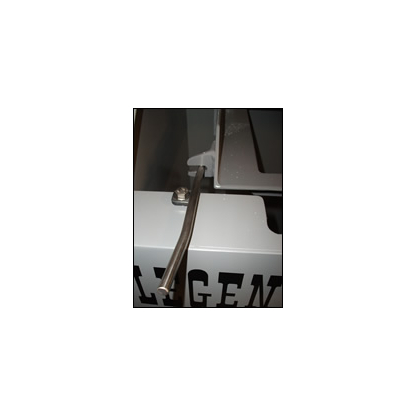

It provides thoroughly mixed samples within 10 to 20 minutes, depending on fullness of the crucible or can. No covers are required, since crucibles or cans are sealed by a disposable layer of poly film between the crucibles and foam to eliminate any cross contamination. The lid clamp uses a new improved "acme thread" jack screw with hand wheel for rapid opening and closing- no tools or compressed air are needed for operation.

Electric Tumbler Mixer, Flux Mixer, Pulp Mixer, Fire Assay Mixer

Download Legend Crucible Mixer Operators Manual
