B-3CA Chrome Alloy Stationary Jaw Plate Badger

Description

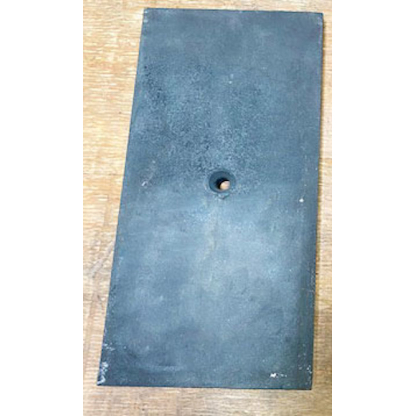

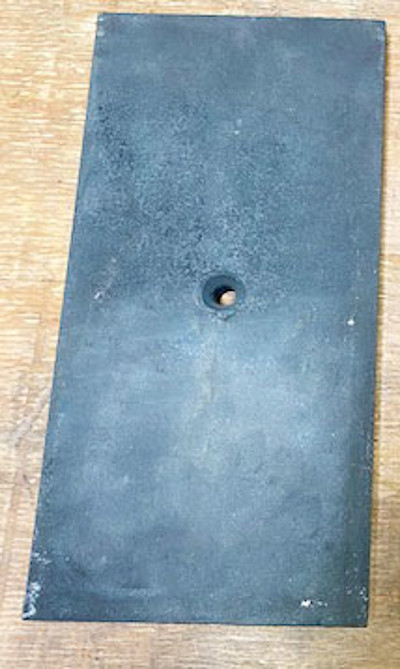

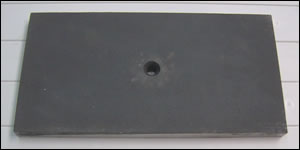

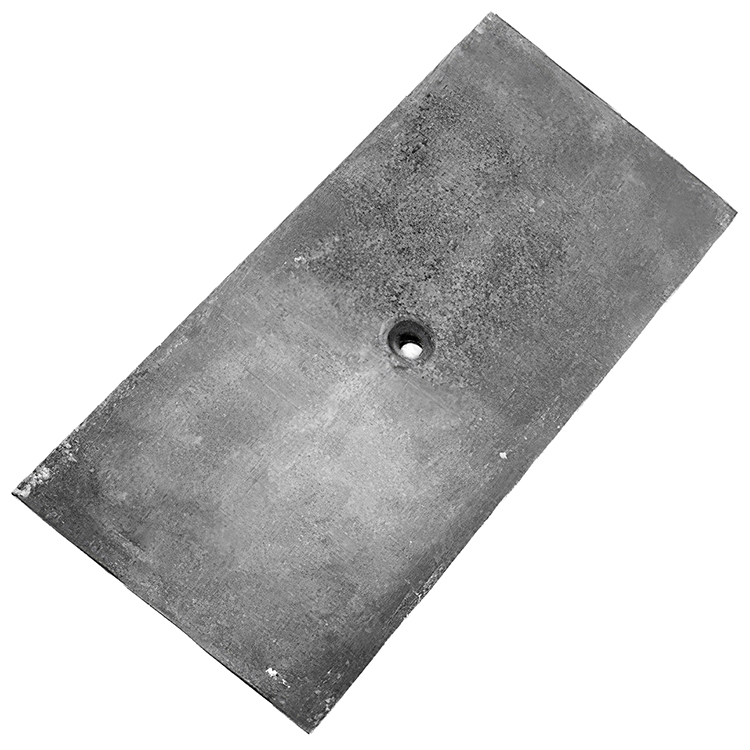

Stationary jaw plate (with one mounting hole)
Badger Stationary Jaw Plate Chrome Alloy
Stationary Plate (B-3CA Part# 24315S)

Movable Plate (B-10CA Part# 24315M) Sold Separately

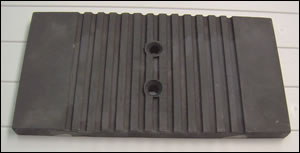

Movable jaw plate (with two mounting holes Part# 24315M). Sold Separately

The Moveable plate is cast with horizontal grooves.

Material Composition:
ASTM A532 class 3 type A
2.4%      C
0.60%    Si
0.80%    Mn
26.0%    Cr
0.45%    Mo

Approximate dimention:
Stationary:14.75"x7.5"x1"
