Batch Vacuum Filter

Vacuum Filter - 10" diameter

Features:

Poly coated steel base with side port

Quick release side clamps

Aluminum barrel

Cast vinyl base grid

Registration pins for easy barrel alignment

Filter cloth and filter paper included

Optional HIGH SEAL filter cloth with bonded seal (24625FHS)

Dimensions: 12" x 12" x 10"

Shipping Weight: 60 lbs

This low cost 2-3/4 gallon (10" Diameter x 8" Height) capacity vacuum filter has many features which are an improvement over traditional designs. The aluminum barrel is attached with quick lever clamps. The coated steel base has a poly waffle grid drainage pattern. The base has a side drain for bench mounting. The cylinder bottom seals against pre-wetted filter paper and cloth on the base.

Comes complete with filter cloth and package of 100 wet strength filter papers. The optional High-Seal filter cloth with bonded vinyl perimeter gasket is suggested for maximum solution recovery.

Vacuum filter shown assembled.

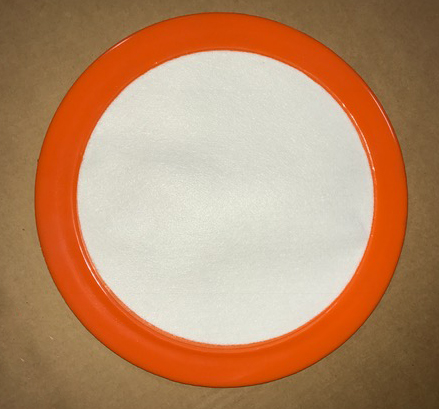

For 100% liquid recovery, the optional high-seal gasket filter cloth should be used. This polyester cloth has a bonded vinyl perimeter and greatly reduces solution leakage.

Vacuum filter shown with barrel removed and with optional HIGH SEAL filter cloth.

Accessories and replacement parts:

24625G 10" Filter paper, pack of 100

24625FHS 10" Gasketed Hi-seal filter cloth

24625F 10" Filter cloth

34625L 10" Cast vinyl base gasket
