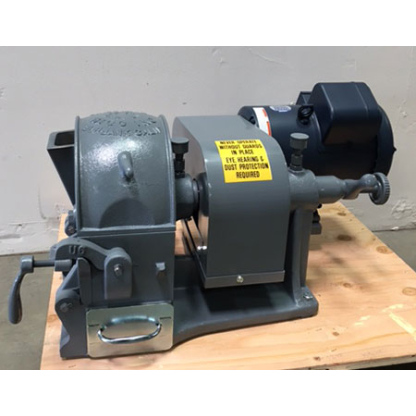

BICO UA Pulverizer 5 HP, 230v, 3 Phase

Description

The disk pulverizer will accept a 1/4" dry friable material and reduce it to a fine powder of 150-200 mesh at approximately 1 lb/minute (based on quartz). The 8" grinding plates can be adjusted and locked into position to obtain the required particle size. Plates are offered in a variety of materials and hardness to suit the users grinding needs and budget requirements. The entire grinding chamber is accessible for easy cleaning and greater sample recovery.

208-230v/440v  (provided wired for 230v- motor can be reconnected for 440v)

Includes Motor Base and Belt Guards.

Motor Specifications:

Capacity: 1 lb (per minute)
Input Size: 1/4" Dry Fryable Material
Reduction Output Size: 150 – 200 MeshRPM: 900 – 1000
Physical Dimensions:
(L)37" x (W)22" x (H)23"

<Download UA Pulverizer Instruction Manual>
<Download UA Pulverizer Diagram>

242-53X5
