Cress C-136 furnace with Watlow PM6 control, 220v 1ph w/HLC & Exhaust Blower

Description

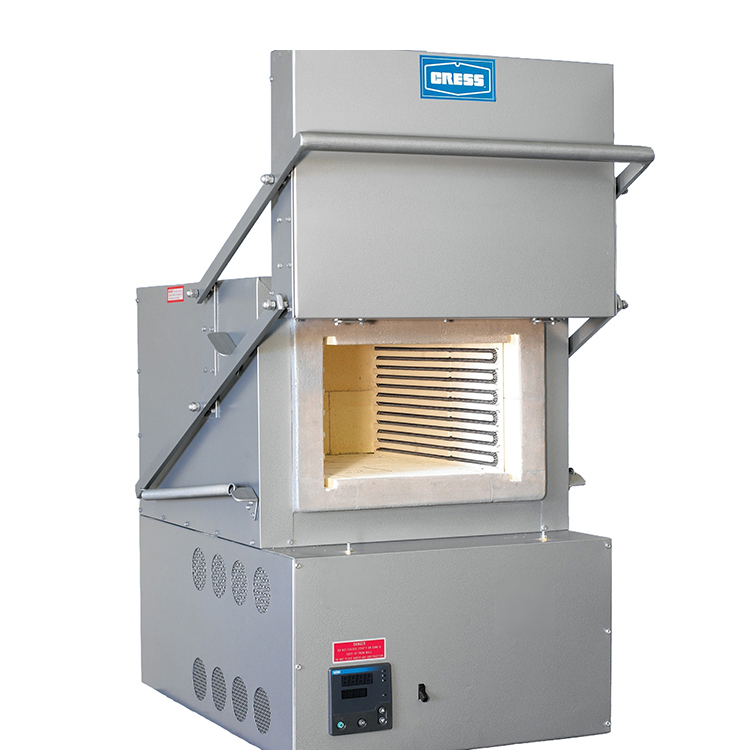

Cress C136 Single Chamber Furnace with Watlow controller, High Limit controller and Exhaust Blower

USES: This furnace is designed for general use in the shop, laboratory or factory that require temperatures from 300^oF to 2250^oF. Their use includes heat treating metals, ashing processes, assaying and all types of testing.

TEMPERATURE CONTROLS: Auto tuning microprocessor-based Watlow PM6 controller.
ELEMENTS: Cress winds precision (digitally controlled element winder) high-temperature iron-aluminum alloy wire into elements and mounts them on the side walls in alumina plates.
MODEL C136: assaying furnace has no bottom element and raised side elements 1" above the floor to prevent burnout due to spilling
GENERAL CONSTRUCTION: Case constructed from heavy gauge sheet steel and finished in gray hammer tone enamel. The easily operated, counter-balanced door is always away from the operator. All walls and the door constructed of the finest quality -insulating firebrick backed by up with 1900^oF block insulation (there is no asbestos). The furnace comes complete with cord and plug.
SAFETY SWITCH: These models come equipped with a door safety switch. When door opens, elements disconnect from the power source. Solid-state zero voltage switching of power to elements.

Venturi Exhaust Vent Kit
This furnace includes the factory installed exhaust blower.
Motor details:
Volts: 220v/60hz
0.53 Amps, 3000 RPM
Approximate volume:  70-80 CFM

Inside dimensions: 10.5" wide x 13" deep x 8" high
Outside dimensions: 26" wide x 28" deep x 24" high
Shipping Weight: 220 lbs
Shipping Dimensions: 37" x 48' x 36"

Volts: 230
Kilowatt: 3
Insulation Thickness: 4"
Max F Temp: 2250 F
Weight: 205 lbs
Shipping Weight: 220 lbs
