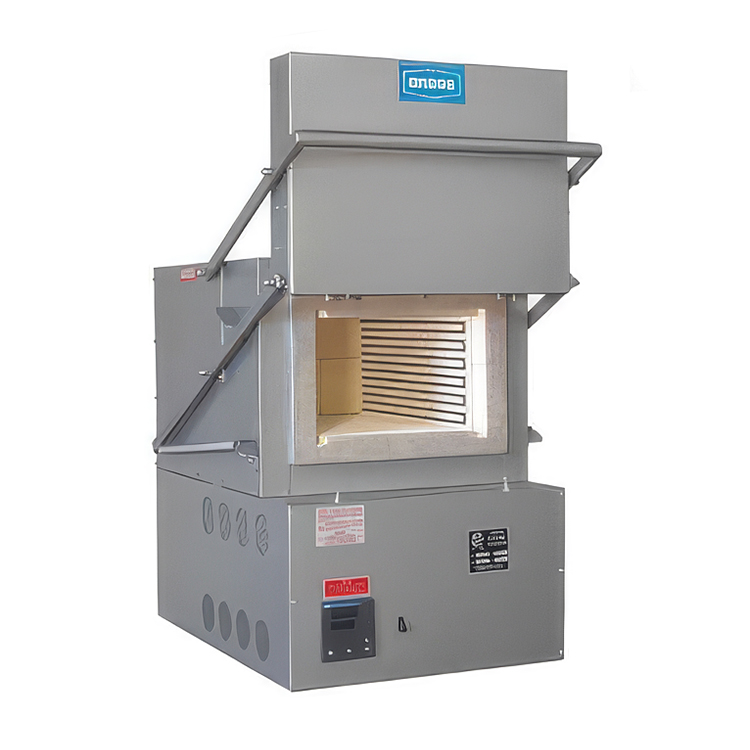

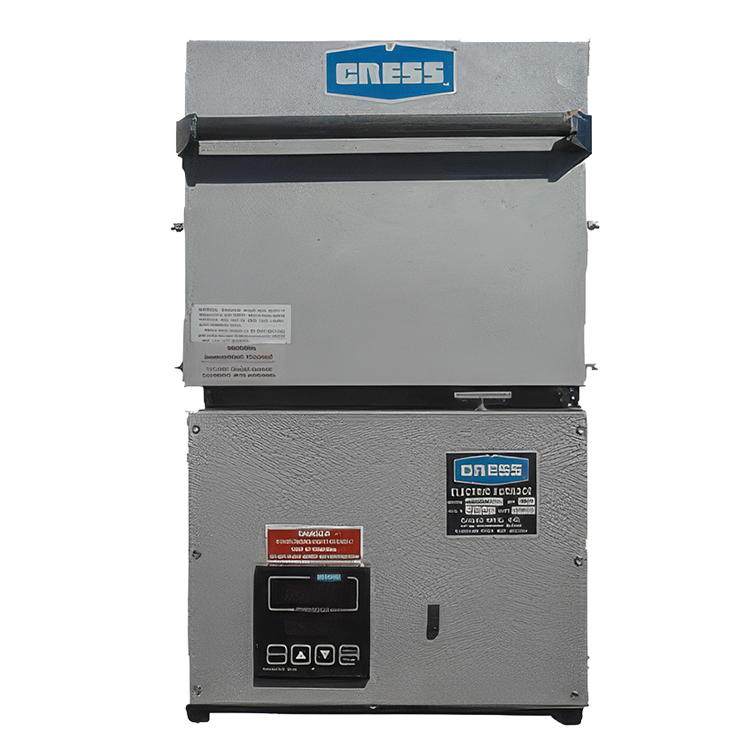

Cress C401H Furnace with PM6 controller (110v)

Description

Cress C401H Furnace 110v with Watlow PM6E controller

Special Order item. Call to confirm lead time.
Ships via Truck Freight only

USES: This model accommodates those users who require automatic temperature controlled furnaces at a low cost. An ideal unit for production shops or laboratories who need a higher temperature furnace operating up to 2250 F.
TEMPERATURE CONTROL: Auto tuning microprocessor based ramping controller including soak timer are standard.

ELEMENTS: C401H – High temperature iron-aluminum wire

Maximum Intermittent Temperature: 2250°F
Maximum Continuous Temperature: 2000°F

Inside dimensions: 6.5″ wide x 9″ deep x 5.5″ high
Outside dimensions: 15.5″ wide x 17.5″ deep x 22″ high

Volts: 110
Amps: 12
Kilowatts: 1.6
Insulation Thickness: 2.5
Max F Temp: 2250
Weight: 100 lbs

Shipping Weight: 145 lbs
Shipping Dimensions: 29″ x 28′ x 34″

WIRING: Furnace is completely wired and equipped with cord ready to plug in to your 110 volt outlet. Control, relay and wiring connections are all enclosed in furnace base cabinet.

GENERAL CONSTRUCTION: Furnace case of sheet steel is assembled by use of electrical welding and sheet metal screws. The spring counter balanced door rises vertically on lever arrangement keeping its hot face way from operator. Walls and door are constructed of high quality insulating brick backed up where needed by 1900 F block insulation (no asbestos). Furnace is finished in heat resistant hammer tone gray.

SAFETY SWITCH: These models come equipped with a door safety switch. When the door is opened, elements are disconnected from the power source.
