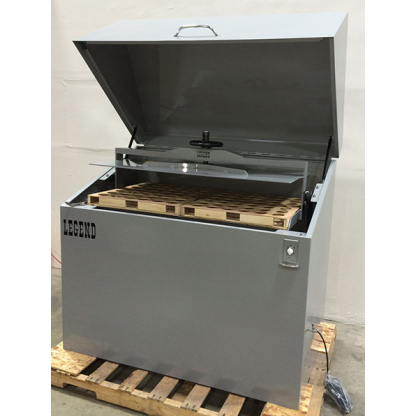

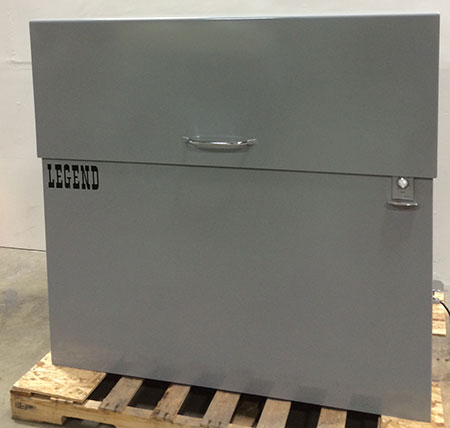

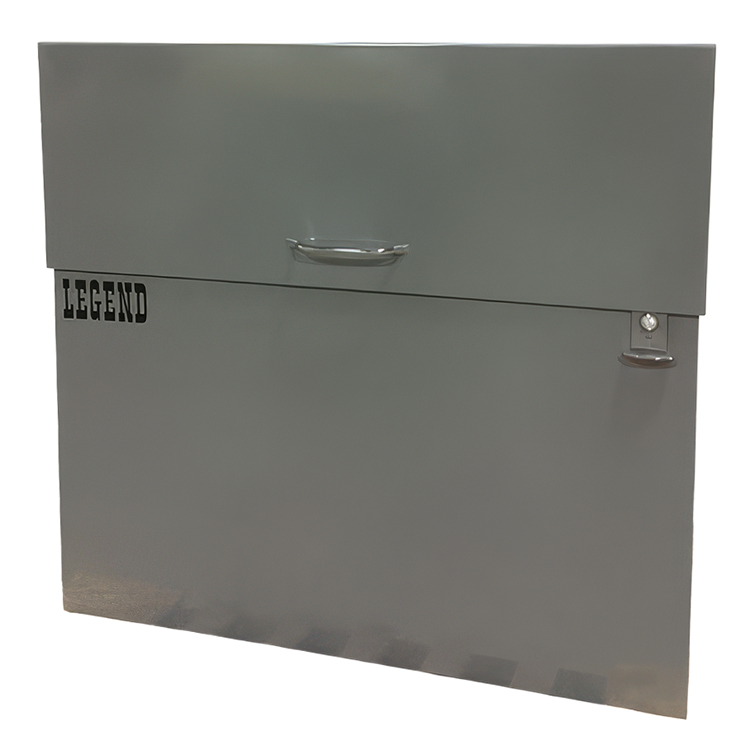

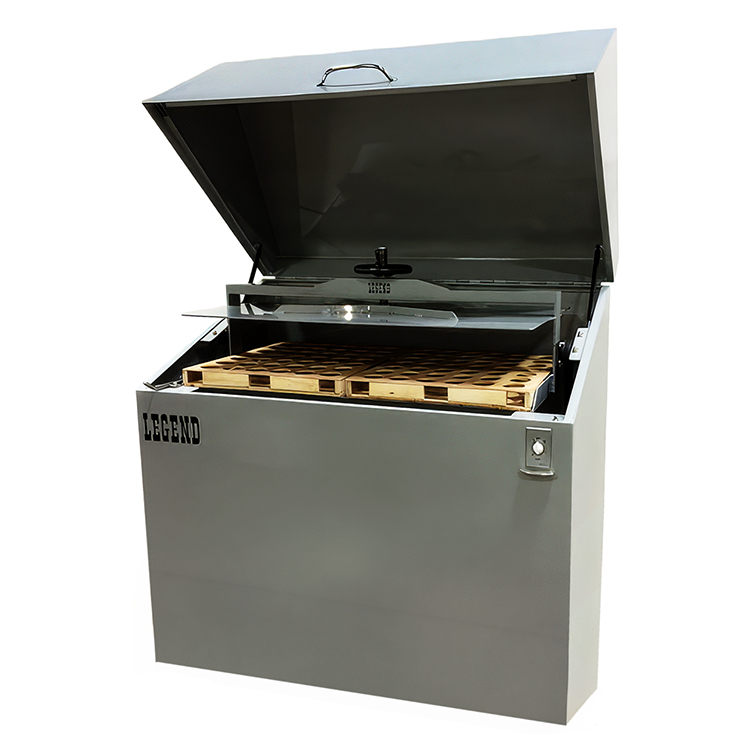

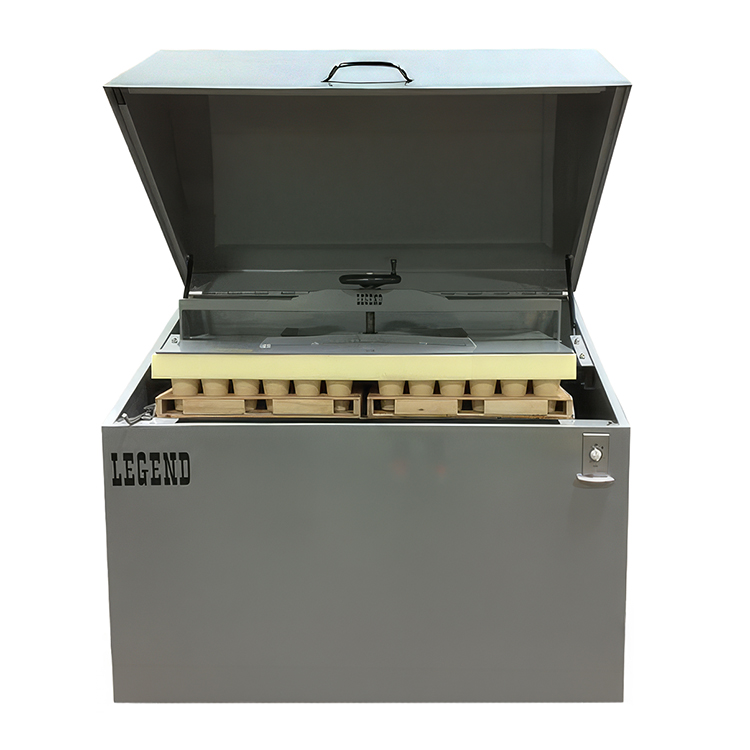

Crucible Mixer, Large Capacity

Description

Large Capacity Crucible Mixer for 84 X 30/40 gram crucibles

Fast, thorough mixing
Increased productivity
Increased safety
Can be used with other sized crucibles
Operates on standard 120 volt power

Approximate Dimensions with Lid up: 34" wide X 64" deep X 79" high
Approximate Dimensions with Lid down: 34" wide X 58" deep X 55" high
Shipping Weight: 850 lbs
Approximate Shipping Dimensions:

Includes: batch timer, door interlock switch, and one 3000' roll poly film.
Crucible pallets (specify crucible size and pattern) and High Density foam cover provided according to customer specification sold separately.

The versatile Legend Crucible Mixer is ideal for a variety of mixing duties including samples for fire assay, pulp and flux in crucibles. Because the operators are removed from the mixing operation, there are significant savings of time as well as substantial safety benefits due to reduced fatigue and repetitive motion. Additionally there is the benfit of removing the operator from the potential exposure and contact with lead dust while mixing.

Provides thoroughly mixed samples within 10 to 20 minutes, depending on fullness of the crucible or cups. No covers are required since crucibles/cups are sealed by a disposable layer of poly film.  This film is put between the crucibles and foam to eliminate any cross contamination. The lid clamp uses a new improved "acme thread" jack screw with hand wheel for rapid opening and closing- no tools, power, or compressed air are needed for lid operation.

"Click to Download" Legend Crucible Mixer Operators Manual
