Economy Sieve Shakers

Description

8″ Sieve Shaker H-4325: 110v / 60Hz (Legend 239733-8)
12″ Sieve Shaker H-4330: 110v / 60Hz (Legend 239733)

Sieves NOT included

Effective design for accurate separation of materials. Suited for laboratory or field use.
Built in Timer.

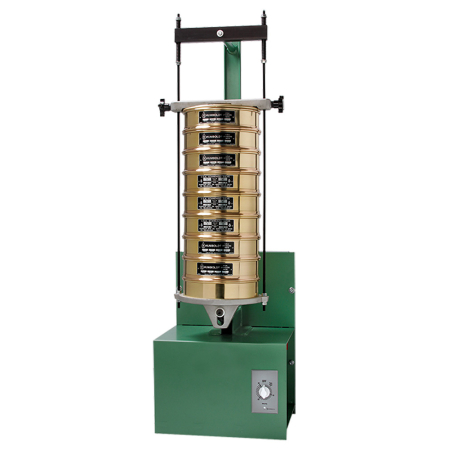

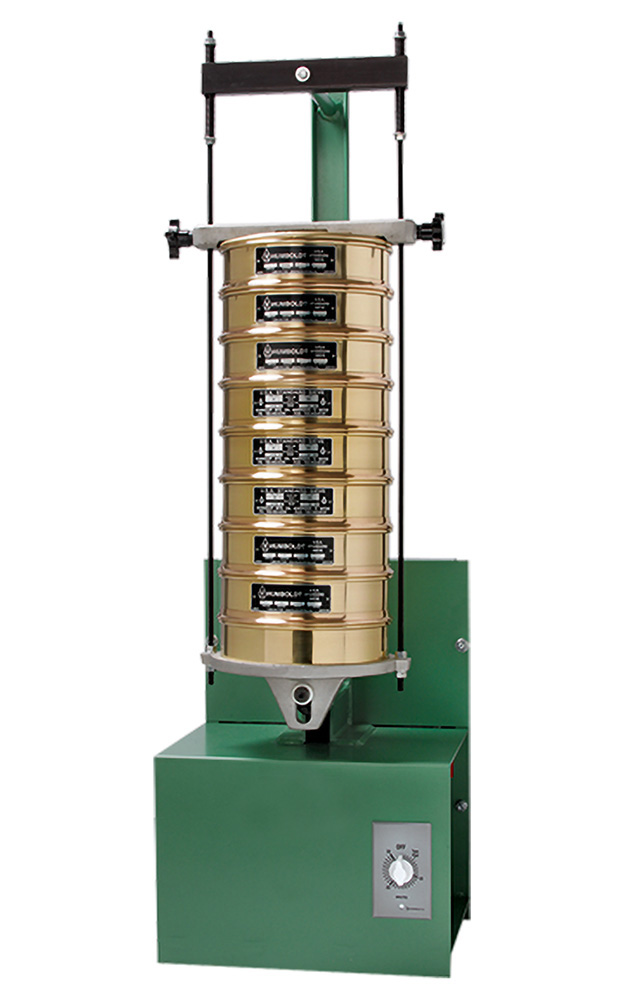

H-4325 Economy 8″ Sieve Shaker can be used with 3″, 5″ and 8″ sieves. It can handle up to ten 8″ sieves, twelve 5″ sieves, sixteen 3″ full-height sieves or eighteen half-height 8″ sieves. This shaker uses a 1/4 hp motor with a 30-minute timer. Unit should be bolted to bench for correct operation.
Dimensions 15″w x 15″d x 45″h (380 x 380 x 1143mm).

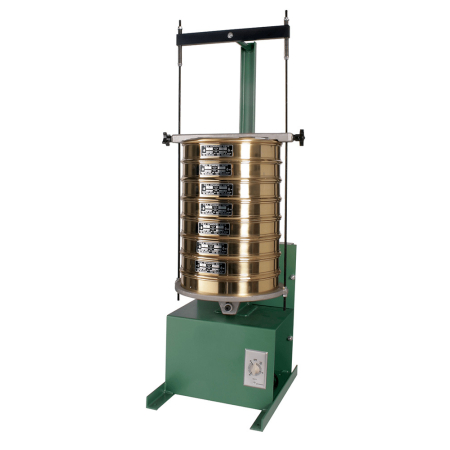

H-4330 Large Economy 12″ Sieve Shaker can be used with 8″, 10″ and 12″ sieves. It can handle up to eleven 8″ sieves, seven 10″ sieves, seven 12″ full-height sieves, nineteen half-height 8″ sieves or thirteen half-height 12″ sieves. This shaker uses a 1/4 hp motor with a 30-minute timer. Unit should be bolted to bench for correct operation.
Dimensions 21″w x 18″d x 47″h (533 x 4570 x 1194mm).

The Econo Sieve Shaker assures accurate sieving or grading tests by utilizing an upward and downward motion for the separation of materials.

Download Operating Instructions Manual PDF – 75 KB
