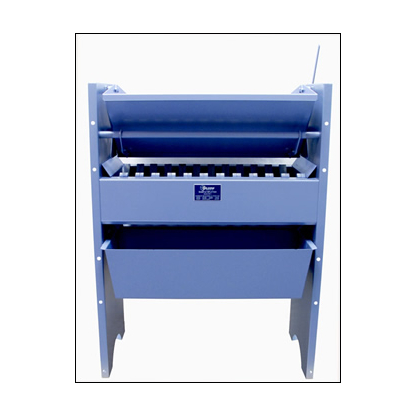

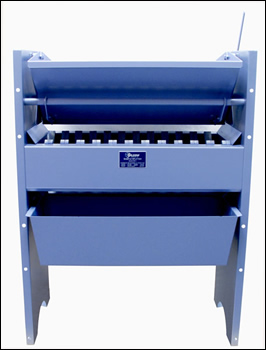

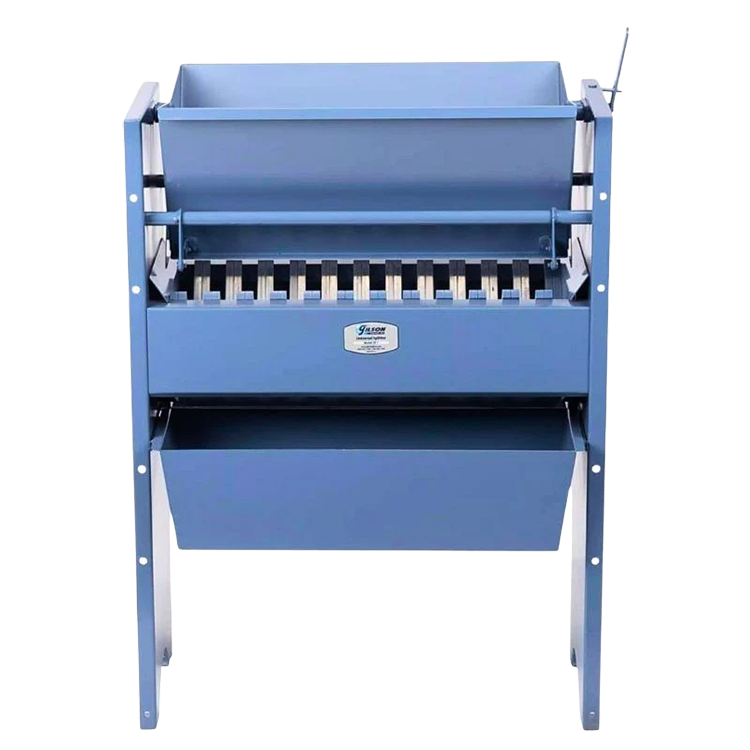

Gilson SP-1 Sample Splitter (MAX 2″)

Description

Gilson Mass Splitter SP-1
Model SP-1 Mass Splitter for Large Volumes to Max 2″ (50.8mm) Sizes. Field aggregate samples up to 400 lb (182kg) (ASTM D 75), raw coal samples to 525 lb (239kg) (ASTM D 2234), and other samples of large volume and large particle size can be reduced accurately with this rugged divider.

Features:
Fast and precise splitting and mixing of granular materials up to 1-1/8in (28.6mm) topsize
Lever-release Gated hopper evenly distributes material for true representative sampling
Compliant with multiple ASTM and AASHTO standards

Maximum Particle Size: 2″ (50.8mm)
Hopper capactiy: 3.5 ft3 (99.1L)
Number of chute bars: 48
Chute bar size: 1″ (25mm)
Chute slope: 60 degrees

Included Items:
Gilson Fixed Chute Splitter
Two Collection Pans
Dimensions 56″ x 26″ x 41″

Click to Download Instruction Manual
