Description

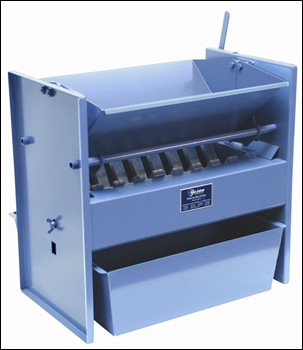

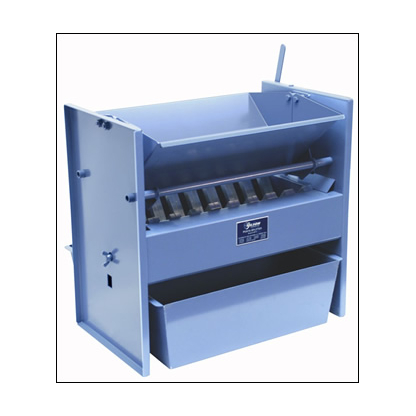

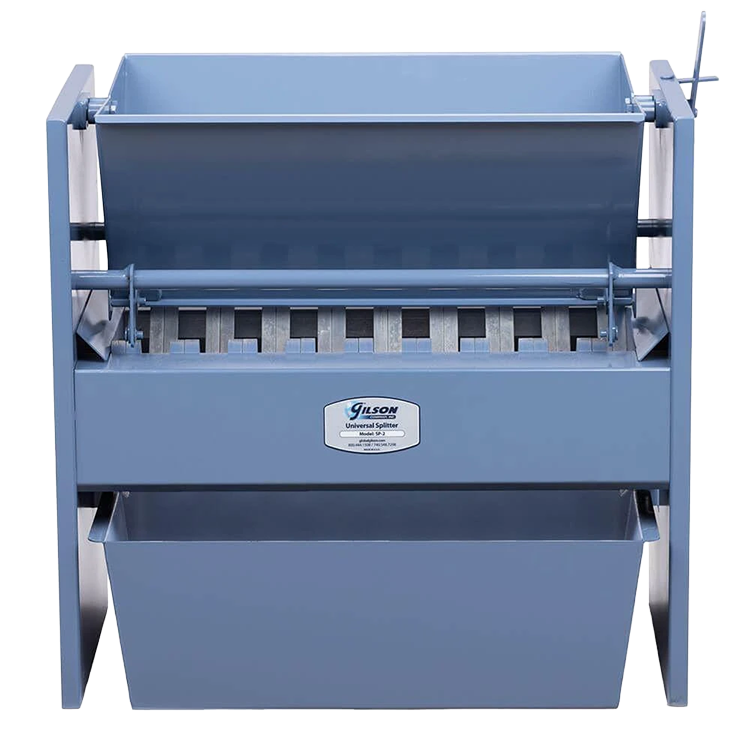

| Gilson SP-2 Porta-Splitter Max 1-1/2" (38.1mm) to Sand Sizes | |
| Gilson's patented combination of adjustable chutes and gate release hoppers assures top accuracy for mixing and reducing gross samples to representative smaller test quantities. Universal Splitters are convenient, space-saving, and cost-effective. A single model serves the purpose of two or more conventional splitters. Larger SP-1 and SP-0 models offer large capacities not available from other sources. Since the hoppers have a gate release, only the included sample collecting pans are necessary for proper use; but extras are available. 45° chutes. Kit available to convert to 60° when necessary for flowability or to meet specifications. Heavy-gauge steel with painted, baked finish. | |
| The Universal chute section is comprised of a set of aluminum bars of precise width that pivot about a rod through their lower ends. Top of bar ends are flipped to alternate sides to form desired width chutes, as determined by number and width of bars grouped on each side. Groupings that results in an equal number of chutes to either side may be used (See table of options for each model). Once set, bars are held tightly together via wing nuts on threaded ends of the pivot rod. | |
| Superior durability sets this compact splitter apart from conventional portable models. Lightweight with ample hopper capacity, the SP-2 has wide appeal for floor or bench use.
A 60° Kit is available – Part # 20180-60 |
|
Maximum Particle Size: 1 1/2" (38.1mm)
Hopper capactiy: 0.55 ft3 (15.6L)
Number of chute bars: 36
Chute bar size: 1/2" (3mm)
Chute slope: 45 degrees
