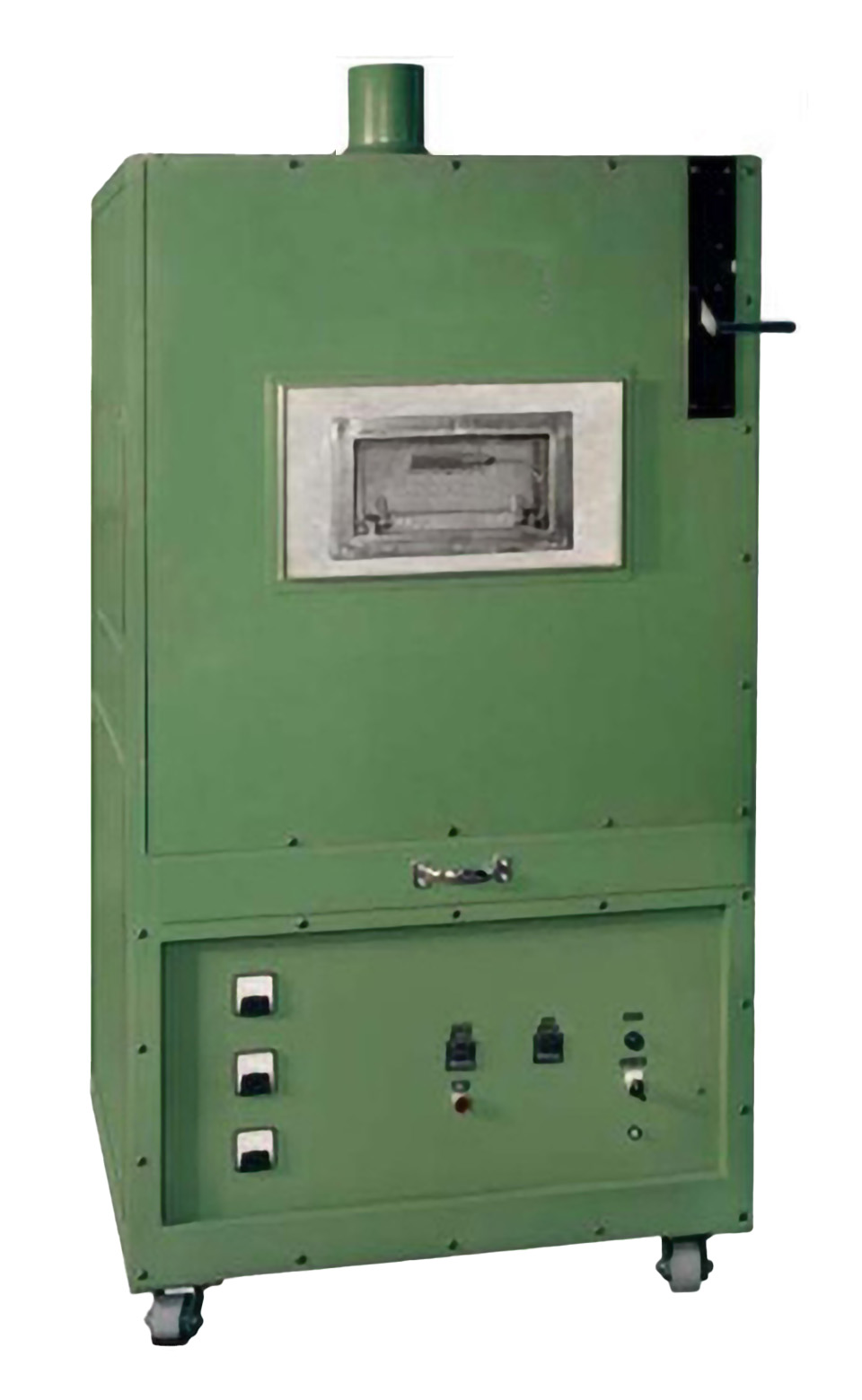

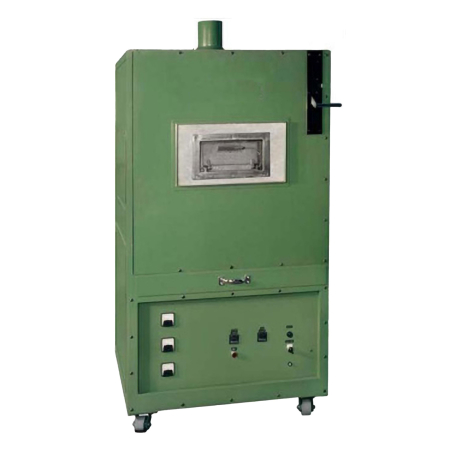

Glo-Bar Assay Furnace (208-240v/3)

Description

Glo-Bar assay furnaces are rugged and reliable for both crucible fusions and cupellation. They are very similar to the old “Williams and Wilson” type furnace.

The furnace casing, made of heavy gauge sheet metal, is specially formed to provide superior structural strength. The control panel is slightly recessed, providing protection for the electronic controls.

All electric and electronic controls are grouped at the base of the furnace. These easy-to-read controls include:

Electronic analogue temperature control calibrated at plant
Electronic over-temperature safety control calibrated at plant
one ammeter (1 phase) or three ammeters (3 phase)

Seven inches of high quality refractory brick ensure excellent insulating properties resulting in reduced heat-up time, increased temperature uniformity and lower production costs.
The materials used in the construction of the chamber offer excellent protection against corrosive elements that may result from the process.
The guillotine-type door is counter weighted and opens from top to bottom. The operator of the furnace may open the door slightly with minimum heat loss.
