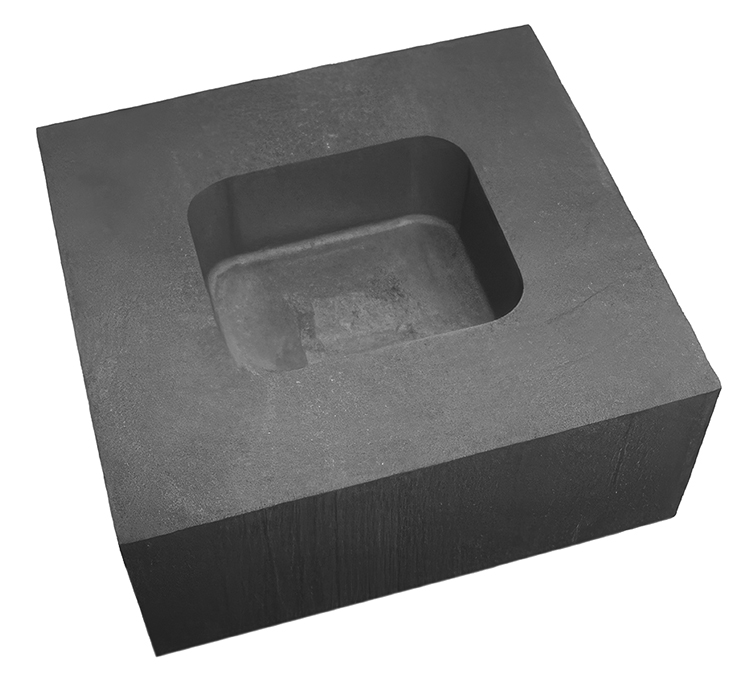

Graphite Ingot Mold – 10 oz Gold Capacity

Description

Graphite Ingot Mold – 10 oz Gold Capacity

Machined graphite ingot with the slight wall taper for better metal removal.

Inside Length: 1.985″ (5.042cm)
Inside Width: 1.185″ (3.01cm)
Depth: 0.5″ (1.27cm)
Outside Length: 3.03″ (7.696cm)
Outside Width: 2.21″ (5.613cm)
Height: 1.02″ (2.591cm)

Grade: GM-111
Method of Manufacturing: Isostatically Pressed
Description: Isomolded, very fine grain, high thermal conductivity and strength graphite.

PROPERTIES US Value / Metric Value
Density: 0.063 lb/in 3 / 1.74 gr/cm 3
Particle Size: 0.0006 in / 0.00152 cm
Flexural Strength: 6400 psi / 44.1 mpa
Compressive Strength: 14000 psi / 96.5 mpa
Resistivity: 4.2 ohm/inx10
Hardness: 60 psi
CTE: 2.2 in/in °F x 10 -6 / 4.0 microns/m °C
Porosity: 12 %
Thermal Conductivity: 67 BTU/(h.ft 2 °F/ft) / 116 W/(m 2 . K/m)
Ash: 0.03 %
