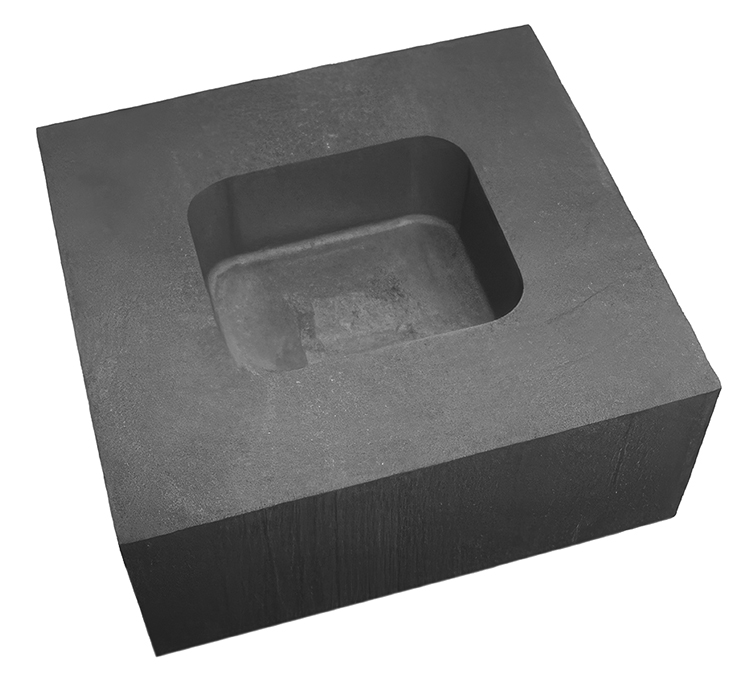

Graphite Ingot Mold – 5 oz Gold Capacity

$41.04

SKU: 18359 Category:

Description

Inside Length:  1.187" (3.015cm)
Inside Width:  1" (2.54cm)
Depth:  0.5" (1.27cm)
Outside Length:  2.187" (5.555cm)
Outside Width: 2" (5.08cm)
Height: 1" (2.54cm)

Machined graphite ingot with the slight wall taper for better metal removal.
Grade: GM-111
Method of Manufacturing: Isostatically Pressed
Description: Isomolded, very fine grain, high thermal conductivity and strength graphite.
PROPERTY US VALUE METRIC VALUE
Density 0.063 lb/in 3 1.74 gr/cm 3
Particle Size .0006 in 0.00152 cm
Flexural Strength 6400 psi 44.1 mpa
Compressive Strength 14000 psi 96.5 mpa
Resistivity 4.2 ohm/inx10 -4
Hardness 60 psi   kg/mm 2
CTE 2.2 in/in °F x 10 -6 4.0 Microns/m °C
Porosity 12 %   %
Thermal Conductivity 67 BTU/(h.ft 2 °F/ft) 116 W/(m 2 . K/m)
Ash 0.03 %

Additional information

Weight 0.5 lbs
