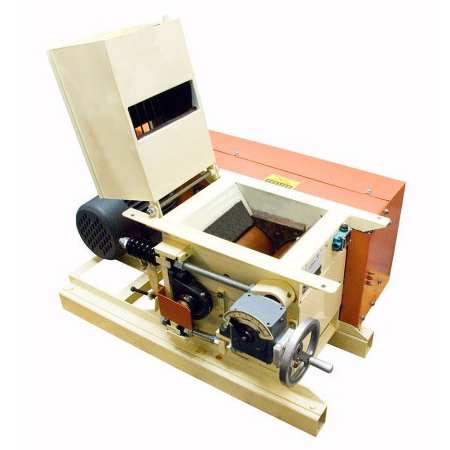

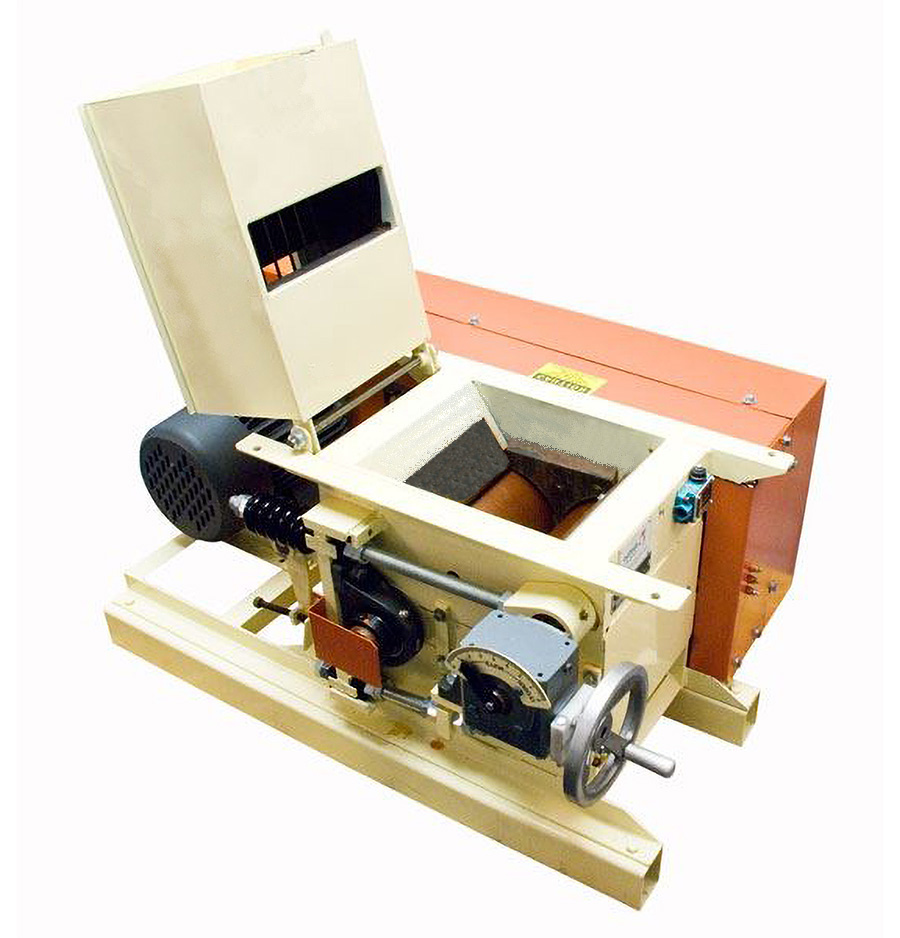

Marcy 9″ x 12″ Double Roll Crusher

Description

Marcy Laboratory Double Roll Crushers

Marcy Laboratory Double Roll Crushers meet your requirements for intermediate crushing of friable rock or similar rock-like materials down to minus 10 mesh (nominal) in a single pass.

FEATURES
* Fabricated steel, high capacity tilt- design feed hopper provides ample feed capacity and simplifies clean-up between samples. An electrical safety interlock shuts down the unit when feed hopper is lifted.
* Cast Ni-hard facings provide long life
* Heavy duty pillow block bearings provide smooth and consistent roll operation
* A single hand lever makes roll adjustment easy
* Fabricated steel drive guard provides for safe operation
* Crusher and motor are mounted on a heavy steel base
* Strong relief springs protect rolls by allowing tramp materials to pass

APPLICATIONS
Designed for intermediate crushing of virtually any material. Especially recommended for assay offices, metallurgical, soil and other commercial/industrial laboratories. The rigorous demands of a pilot plant operation call for equipment which is tough, yet easily operated. All Marcy Laboratory/Pilot Plant Equipment is constructed to meet and exceed these demands

SPECIFICATIONS: 8000
Capacity: 8,000 lb/hr
Max. Feed Size: 1/2″ feed minus 10 mesh product
Drive Description: V-belt drive 5 HP TEFC motor (220v / 3ph)
Dimensions: 61″ x 32″ x 34″
Shipping Weight: 2200
