Model “A” Pot Furnace for #8 Crucible

Description

The new and improved Model “A” Pot Furnace*

Use with #8 graphite or Silicon Carbide crucibles (or smaller).

May also be used with some #10 graphite crucibles depending on size and application.

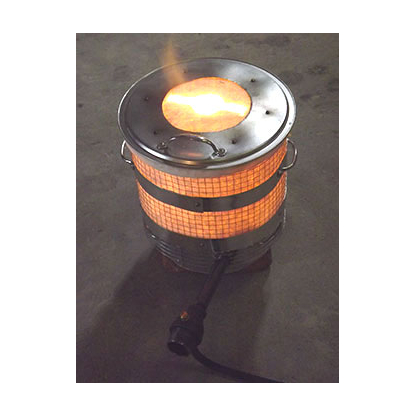

The Model A furnace will melt bronze in 15 minutes and cast iron in 30, faster than ANY other furnace.

The Model A furnace puts out 90,000 BTU and operates at 20 PSI LPG.
ID-8″ wide and 9.5″ tall.
OD- 12″ wide and 13.5″ tall.
Total weight….25 LBS.
2575 F Maximum Temp.

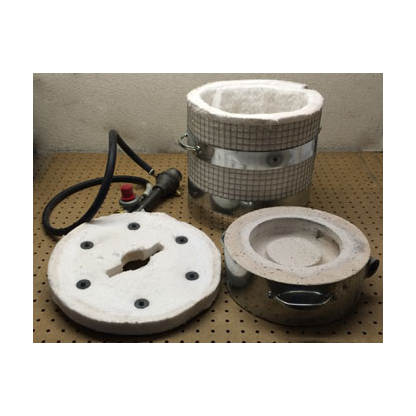

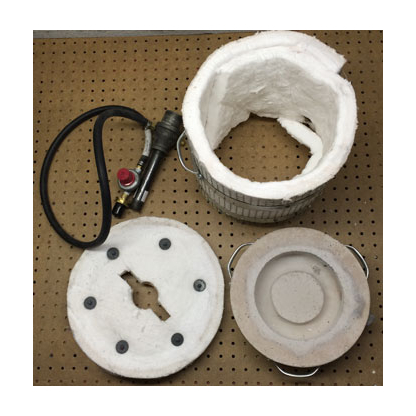

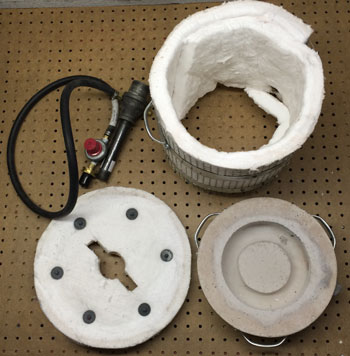

Body and lid are made of a lightweight ceramic fiber.
Base is cast refractory with integrated “base block”
