Tyler 12″ Ro-Tap Sieve Shakers – RX-30 Series

Description

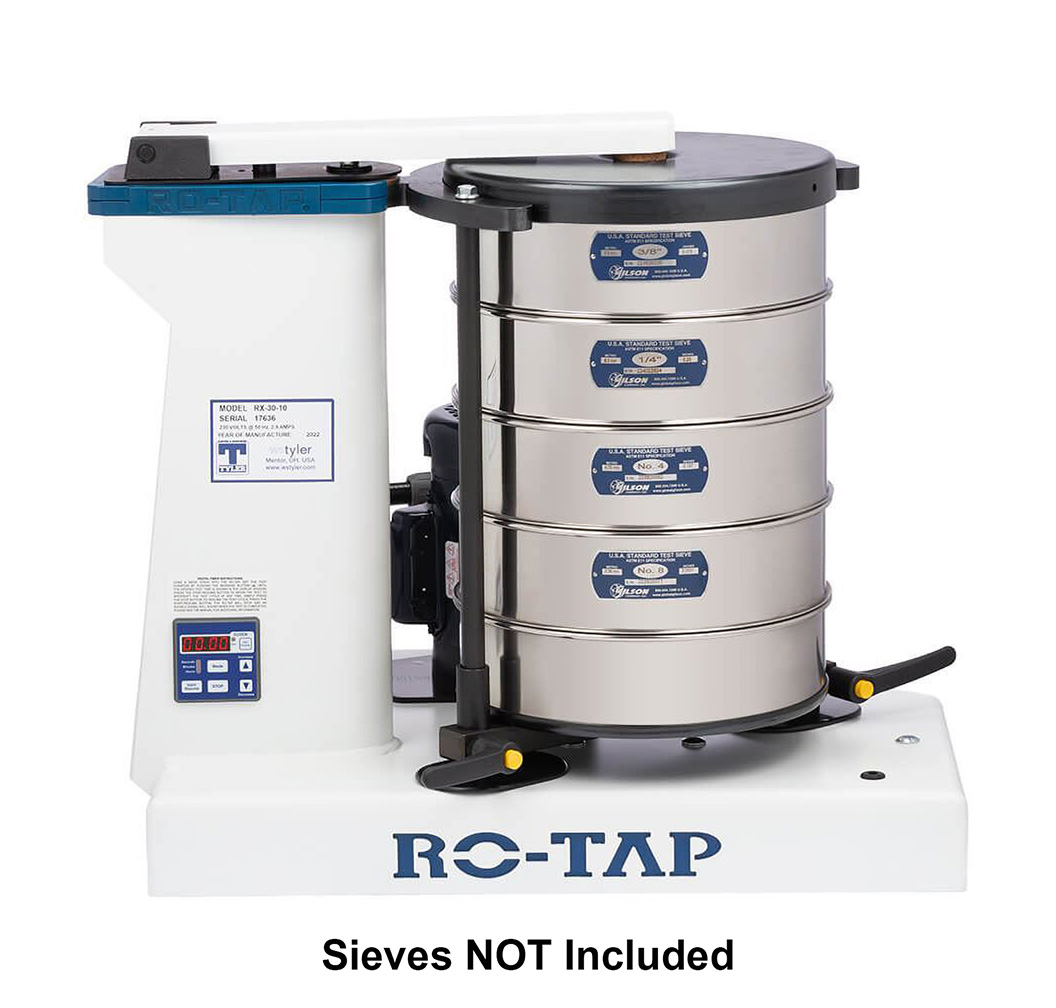

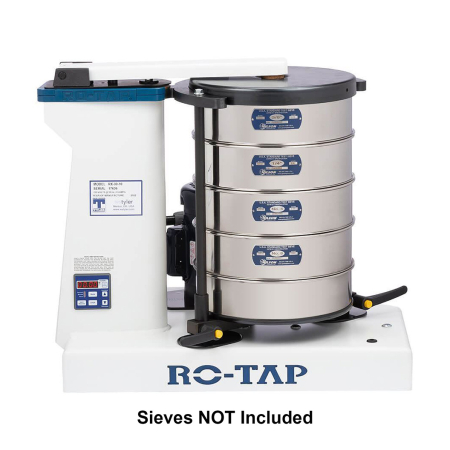

Tyler 12″ Ro-Tap Sieve Shakers

Available Voltages:
RX-30: 115V, 60Hz (Legend 23970)
RX-30-16: 230V, 60Hz (Legend 23970-30-16)
RX-30-10: 230V, 50Hz (Legend 23970-30-10)

The 12in Ro-Tap Sieve Shaker holds up to four full-height 12″ or 300mm diameter test sieves and pan, six intermediate-height sieves and pan, or eight half-height sieves and pan. 12in sieves have more than twice the effective sieving area as 8″ sieves.

Recommended for separations of particle sizes ranging from 1/2″ – No.500 (12.5mm–25µm).

Dimensions: 28″” x 21″ x 25″ (711mm x 533mm x 635mm) W x D x H

Sieve Capacity with Pan:
Full-Height: (6) 8in Sieves or (4) 12in Sieves
Half-Height: (13) 8in Sieves or (8) 12in Sieves

Ro-Tap Sieve Shakers combine a rate of 278 oscillations and 150 taps per minute. A horizontal, circular action applied to the sieves, combined with the vertical tapping of the hammer, allows materials to separate and “seek” critical openings in the sieves. This two-dimensional operation ensures accurate and consistent particle analysis testing results.

This sieve shaker eliminates the need for hand sieving, saving the operator valuable time that can be spent elsewhere in the lab. Using this shaker decreases the amount of time spent on each analysis, allowing the operator to perform more tests and analyze more results in less time.

These rugged test sieve shakers are built for heavy-duty use and can be bolted to a solid table or sturdy benchtops for stable operation. All models feature a powerful 1/4hp motor for performing consistent particle analysis testing, an adjustable-plate sieve support, and a built-in 99min digital timer that is accurate to 0.1 second.

Shipping Weight Approx: 220 lbs

23970-12 – RX-30
23970-30-16 – RX-30-16
23970-30-10 – RX-30-10
Rotap
