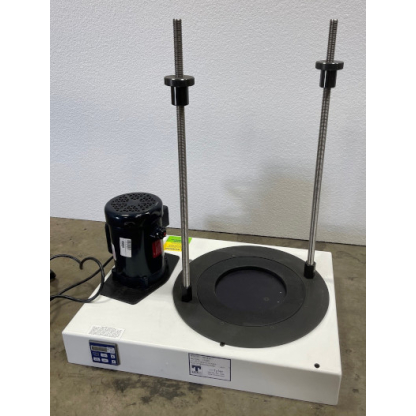

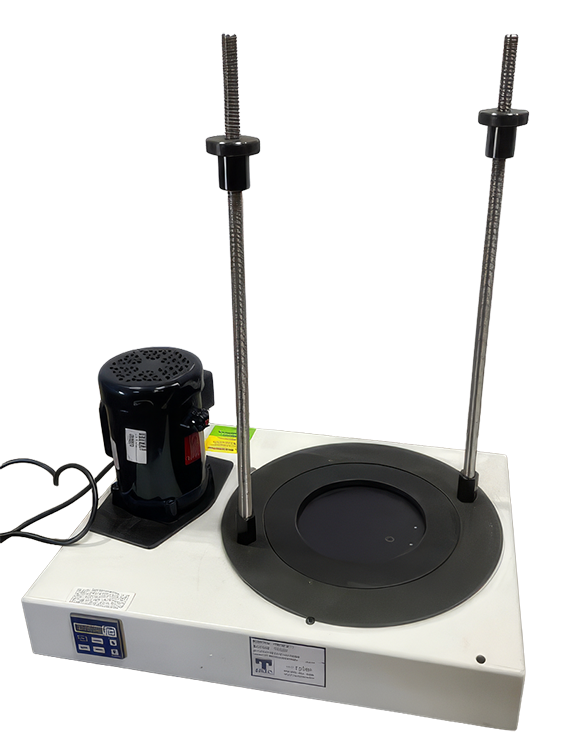

Tyler 220v 60Hz Sieve Shaker RX-812-1 (open box)

Description

Open Box Item

TYLER RX-812 Coarse Sieve Shaker 220v/60hz

For test sieve analysis ranging in particle size from 4″ opening through 150 micron (USA No. 100) Equipped to process both 8″ and 12″ diameter test sieves.

Affordable and has quiet operation
Digital 99-minute clock timer control, accurate to 0.1 second, is standard

Technical Data:
Operation voltage
# 23975A: 220 Volt, 60 Hertz
Revolutions/min: 280
Sound emission: =70 dBA
Weight: approx. 28 kg
Dimensions: 590 x 380 x 330 mm (B x D x H)

For 6 standard/13 half height test sieves 8″/200 mm Ø, and FH pan.
Or 4 standard / 8 half height 12″/300 mm Ø and 1 FH pan.

Feed capacity: max. 3 kg (depending on the apparent weight).
Shipping Weight: 95 lbs
Dimensions: 25″ x 19″ x 15″

This product is not packed for UPS shipping. Shipping by truck.
