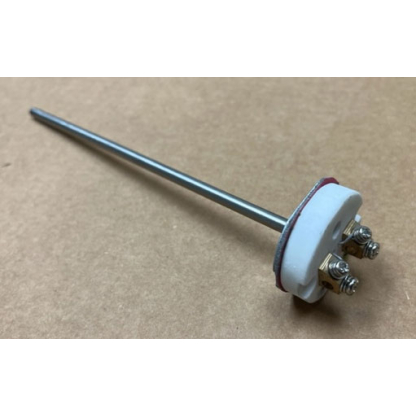

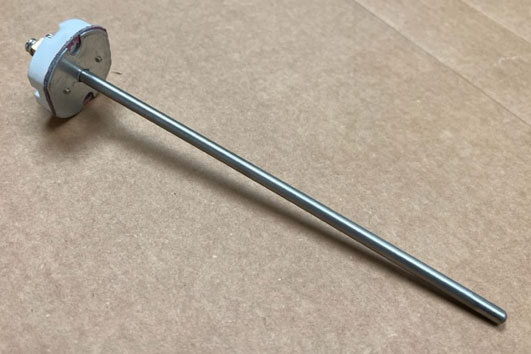

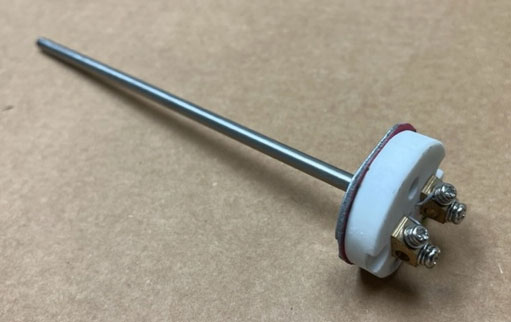

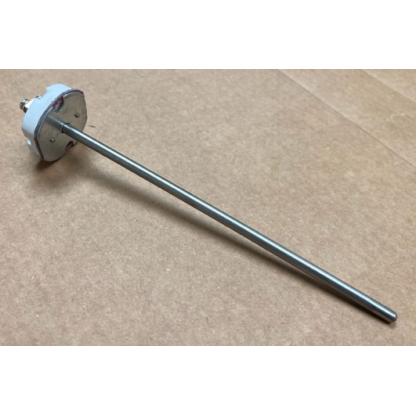

Type K Thermocouple for Model 810 Furnace 8″

Description

Type K thermocouple for model 810 and 2F1 furnaces- or other furnaces using type “K” thermocouples such as Vcella Furnaces and Kilns.

Lead wire for model 810 furnace sold seperately PN# 26955.
Metallic sheath.  Alumina hub.  Connectors labeled with “+” and “-” embossed into hub.
Overall length: 8-1/2″
Tube length: 8″
Tube diameter: 1/4″
DFC Type K Thermocouple. Cross reference part number: C14280101, C81100056, C91100056

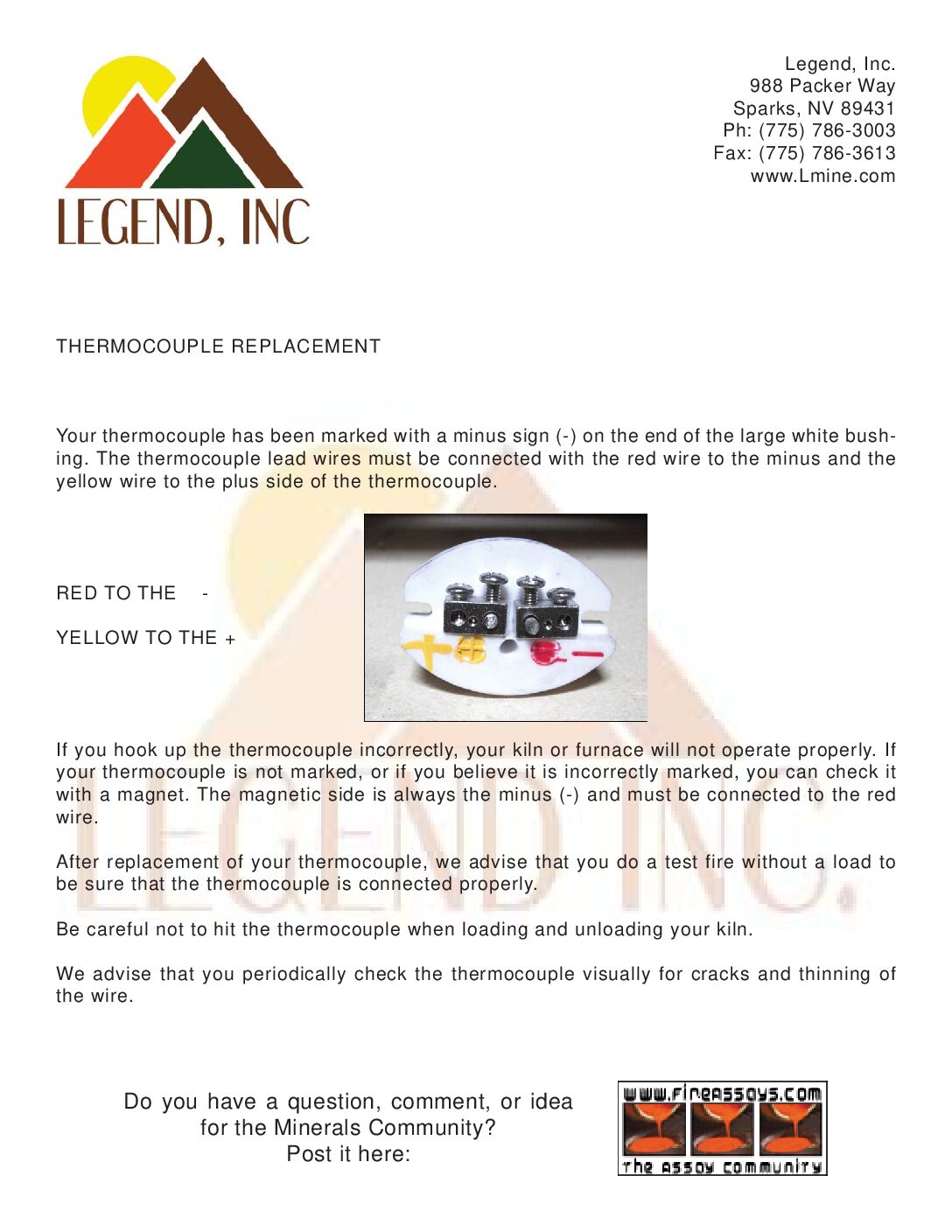

Download Thermocouple Replacement Instruction Sheet
