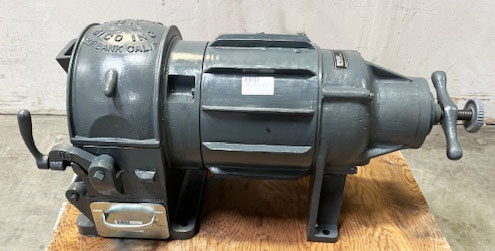

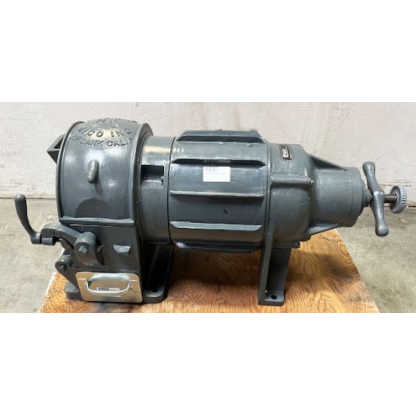

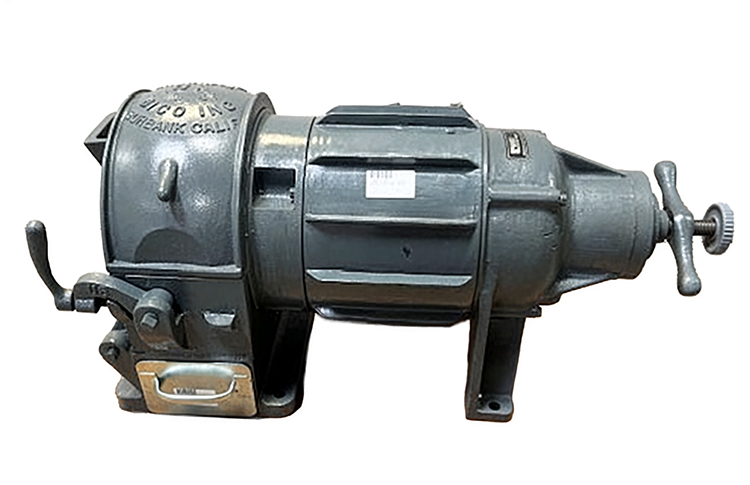

Used Bico UD Pulverizer w/motor 3hp/3ph

Description

Used Bico UD disk pulverizer- Direct Drive.  Will feed 1/4″ dry friable material and reduce it to a fine powder of 100-200 mesh at approximately 1 lb/minute (based on quartz).

• Includes ore pan
• Includes NEW UA-51/52 grinding plates

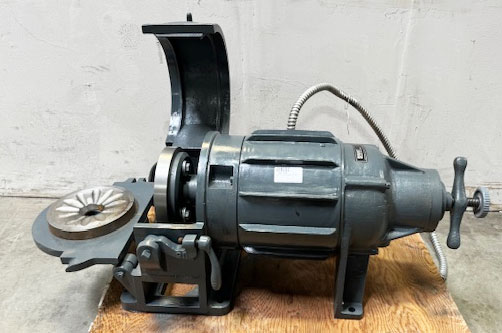

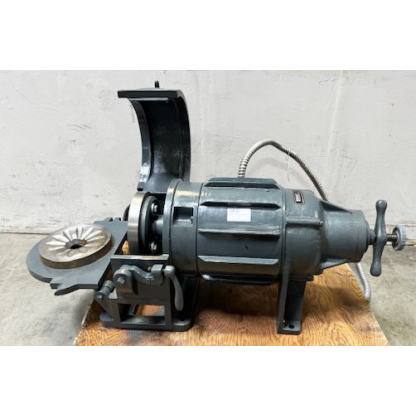

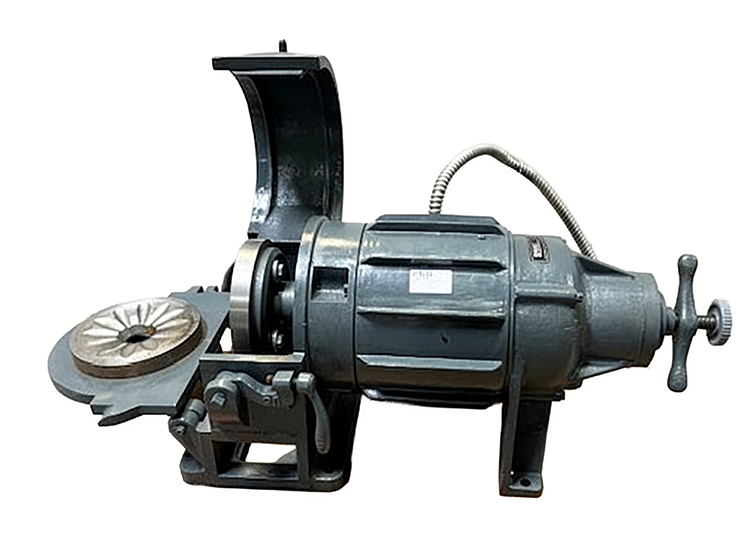

• The 8″ grinding plates can be adjusted and locked into position to obtain the required particle size.Plates are offered in a variety of materials and hardness to suit the users grinding needs and budget requirements. The entire grinding chamber is accessible for easy cleaning and greater sample recovery.

GENERAL SPECS

Capacity: 1 lb (per minute)  Input Size: 1/4″ Dry Fryable Material  Reduction Output Size: 150 – 200 Mesh

RPM: 900 – 1000 3 HP 220V/3 Phase 50/60 Hz
(can be reconnected for 440V/3 Phase 50/60 Hz)
(L) 44″ x (W) 15.25″ x (H) 25.50″
