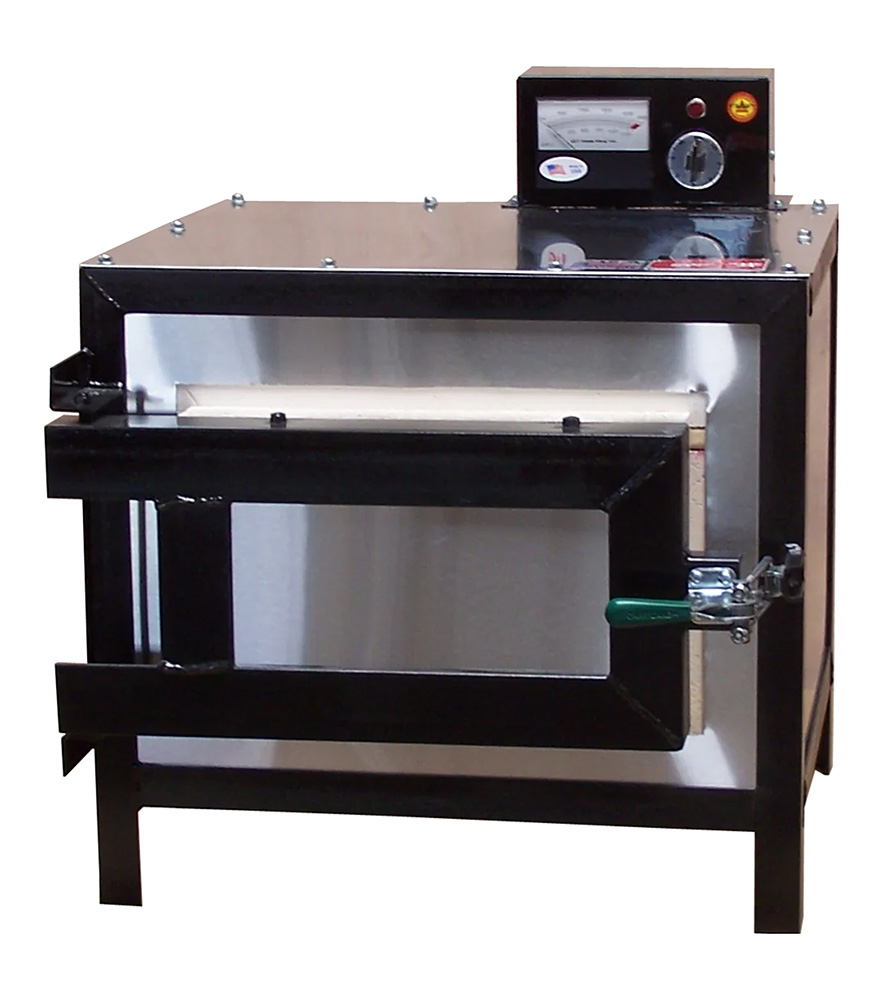

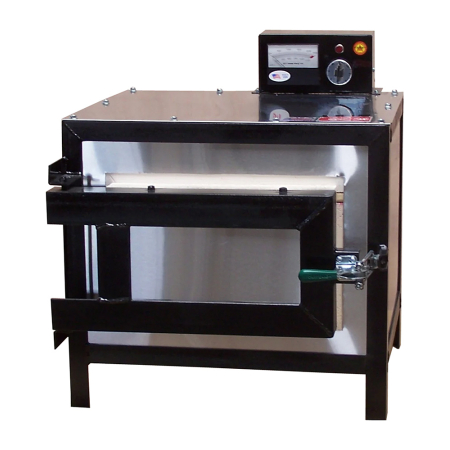

Vcella #13, 240v w/controller and roof and door port

Description

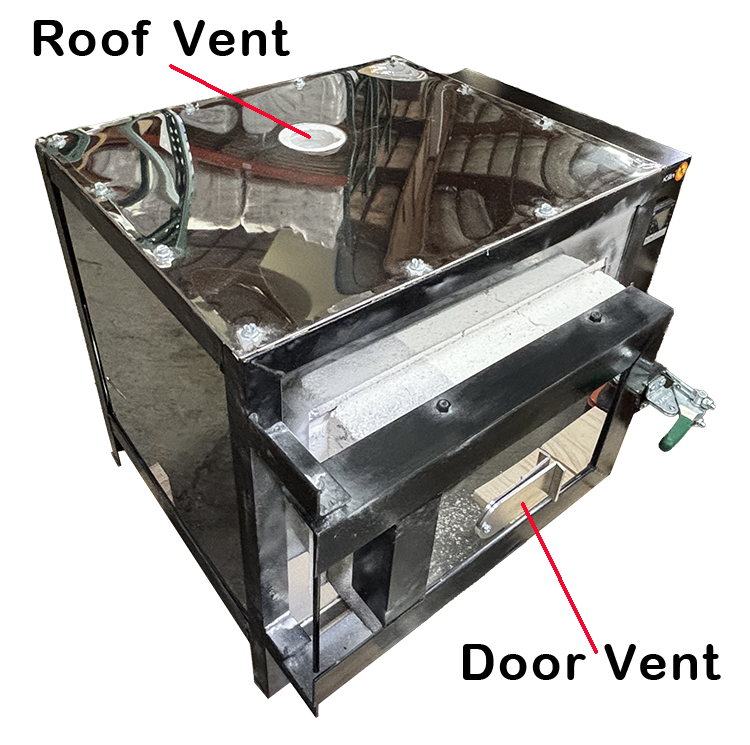

Vcella #13, 240v w/controller w/2″ roof and 1″ door port

Stainless steel case with heavy duty angle iron frame
Interior walls of 2300°F insulating fire brick
Solid block back-up insulation that will not pack down or burn out during prolonged use

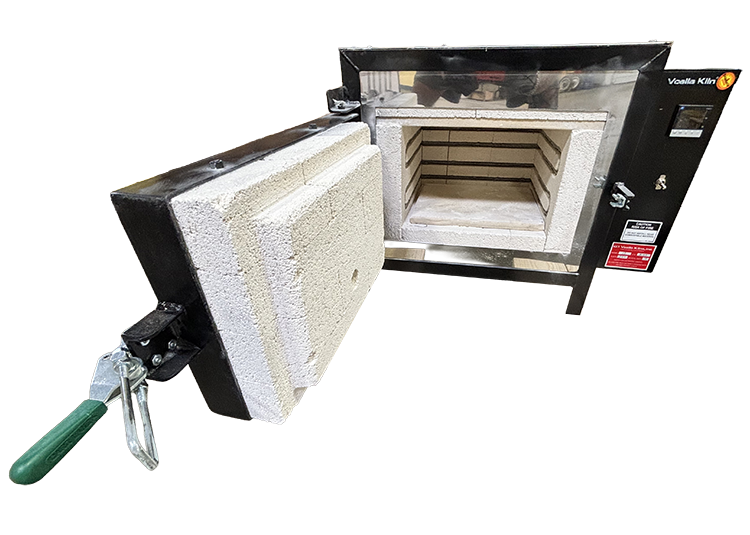

Plug doors insure minimum heat loss
Heavy duty hinges prevent sagging
Solid arch plate prevent brick dusting onto ware
Fast firing at low amperage
Complete with Pyrometer
Infinite switches to allow flexible firing
Pilot lights to indicate when kiln is on
Electronic temp control

Inside Dimensions: 12″W x 12″D x 8″H
Outside Dimensions: 20’W x 21″D x 24″H
Cubic Feet: 0.75
Weight lbs: 140
Volts: 240
Amos: 15
Watts: 3600
Includes single set point electronic controller (not shown)
2300°F maximum temperature.
Download Vcella Furnace Instructions
