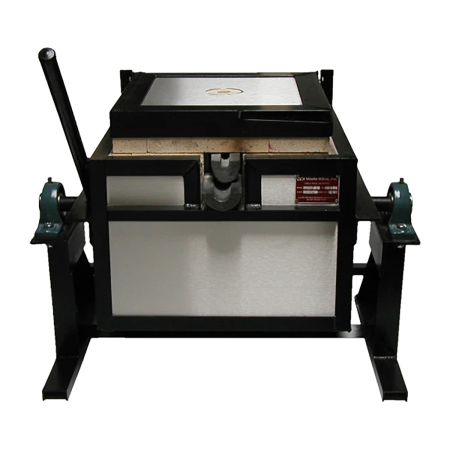

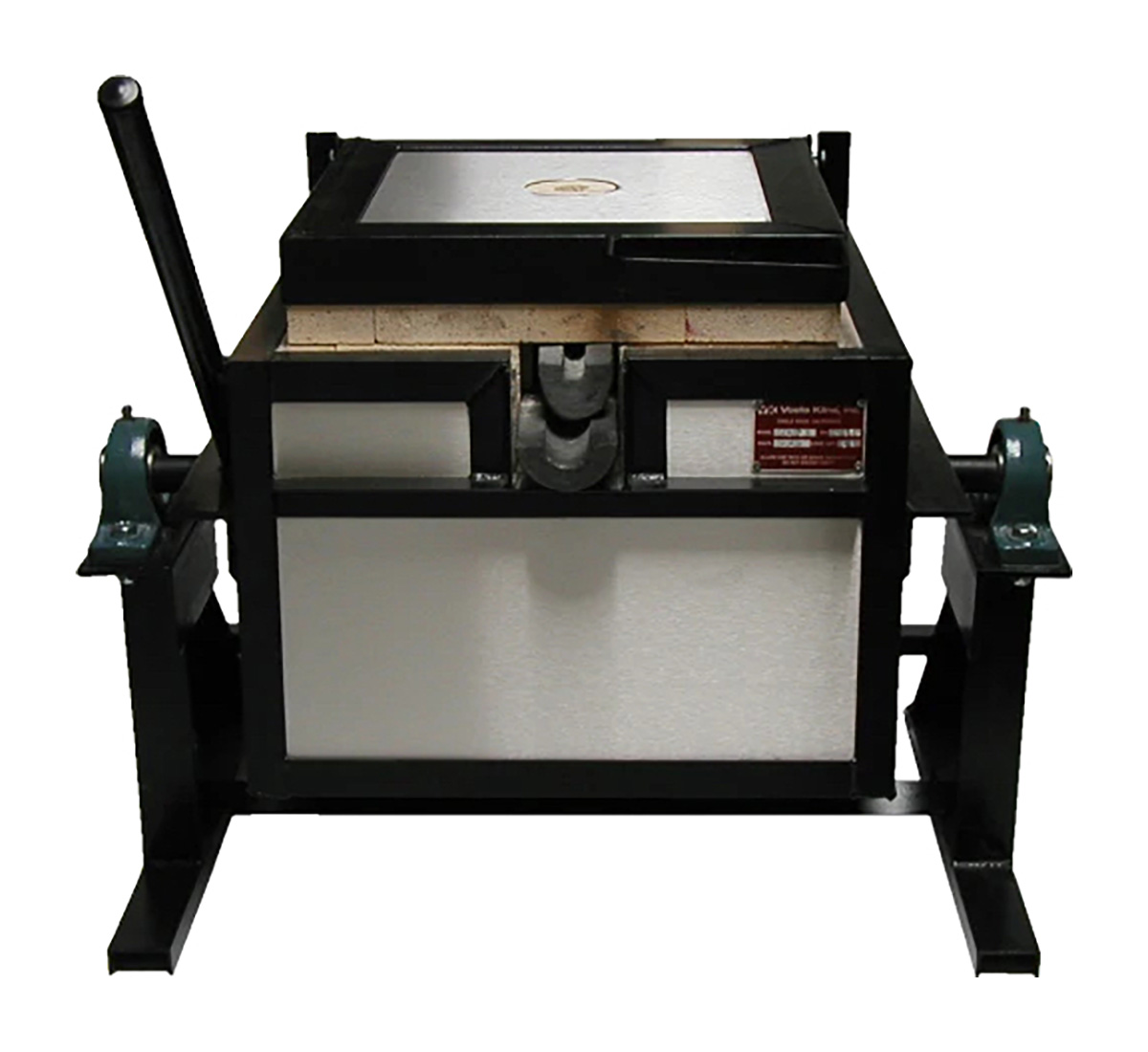

Vcella TL-16 Tilting Furnace

Description

Vcella TL-16 Tilting Furnace
240 volt
Single Phase
28 Amps

Features:
Automatic temperature controls with digital readout (Furnace maintains temperature set by operator).
Rugged yet light weight construction for long life.
Vented lid which latches in up position.
Heavy wall clay graphite crucible with spout.
Insulating brick lining for maximum heat retention.

Model #: TL 16
Crucible Size: #16
Maximum Temperature: 2300℉
Approximate Capacity Red Brass: 70 lbs.
Approximate Shipping Weight: 300 lbs.

Approximate Crucible dimensions:
OUTSIDE DIMENSIONS
Outside Height: 9-1/4″ (235mm)
Outside Top Diameter: 7-1/8″ (235mm)
Outside Bottom Diameter: 5-1/2″
INSIDE DIMENSIONS
Inside Height: 8-3/8″
Inside Top Diameter: 5-1/2″
Shipping Weight: 16 lbs
Shipping Dimensions: 21″ x 25″ x 21″
