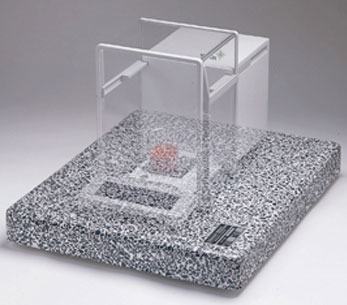

Vibration Damping Platform- Large (18×22″)

Description

Vibrasorb Damping Mount isolates analytical balances and other sensitive instruments from the vibrations that may be caused by other nearby operating equipment.

Absorbs vibrations down to 16Hz with a maximum load of 16Kg (35 lb.). With lighter loads, the minimum frequency of damping will increase to a value between 16 Hz. and 25 Hz.
Four Vibro-Sorber cushions and neoprene feet support the platform.
Platform thickness: 64mm (2 1/2"). Overall height with feet: 76mm (3").
Platform dimensions: 45 x 56 cm (18 x 22").
Cast of dense black & white terrazzo with polished surface that resists scratches and chemical attack.
